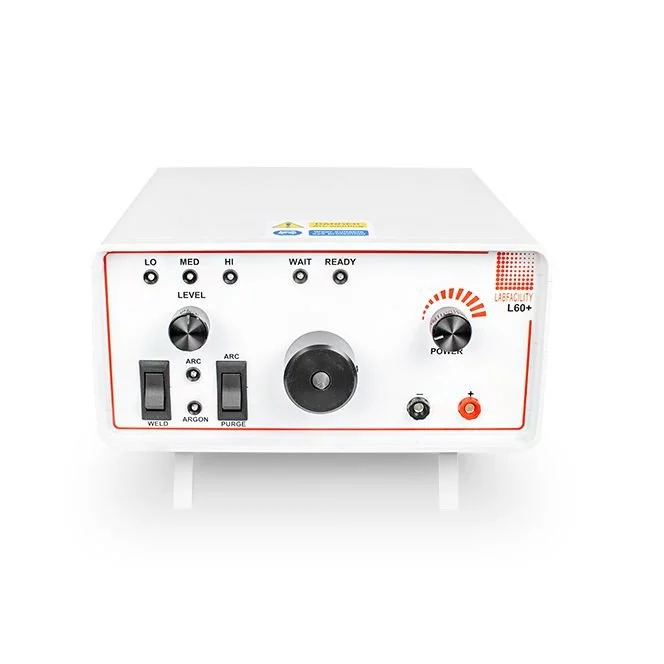

L60+ Thermocouple & Fine Wire Welder and accessories
The L60+ Thermocouple & Fine Wire Welder, manufactured by Labfacility, is a compact, simple-to-use instrument designed for thermocouple and fine wire welding.
It is primarily designed for use by sensor manufacturers to produce commercial grade thermocouple junctions; it is ideal for producing large numbers of exposed junction thermocouples for test and development laboratories. The L60 Thermocouple Welder is ideally suited to transducer and RTD extension lead attachment.
Use of the Thermocouple Welder does not require special skills and most operatives will be capable of producing quality work with little practice. The instrument is supplied with a full range of user accessories including a footswitch.
Suitable for use with wires of up to 1.1mm diameter an argon gas shield facility is included but a satisfactory thermocouple junction is produced without the need for argon. The output energy of the L60 Thermocouple Welder can be varied up to 60 Joules.
Simple to use Thermocouple Welder
Designed for the production of commercial grade thermocouple junctions
Also suitable for other fine wire work
Front panel or footswitch operation
Argon gas shield facility
Supplied complete with the following accessories:
Wire Holding Pliers & Lead
Safety Glasses Magnifying Eyeglass
Argon Hose
2 x Carbon Electrodes
Spare 2A Fuse & Mains Lead
Footswitch for greater ease of use
Welder Pen & Plate
Impact Clip
Specifications
General Description
The Thermocouple Welder, manufactured by Labfacility, is a compact, simple-to-use instrument designed for thermocouple and fine wire welding.
Dimensions
220mm (W) x 120mm (H) x 250mm (D)
Power Consumption
Max 170VA dropping to 20VA during charging
Power Supply
110-120 Vac or 220-250 Vac, 50-60Hz
Standards Met
BS EN / CE
Energy
Output 0-60 Joules
Duty Cycle
Minimum 5-10 welds/min
Welding Capacity
Wires up to 1.1mm diameter
Argon Pressure Regulator Level
<5 bar
Maintenance
Apart from keeping the electrode in good order, no other maintenance is required.
